High-performance chromatography, done on-site.
Apix Analytics empowers you to take control of gas analysis on-site, in real time, and at a fraction of the cost. Our compact, high-performance chromatographs eliminate delays, reduce operational costs and simplify your workflow. Get lab-grade results without the lab.
What is an
Apix Analytics Module ?

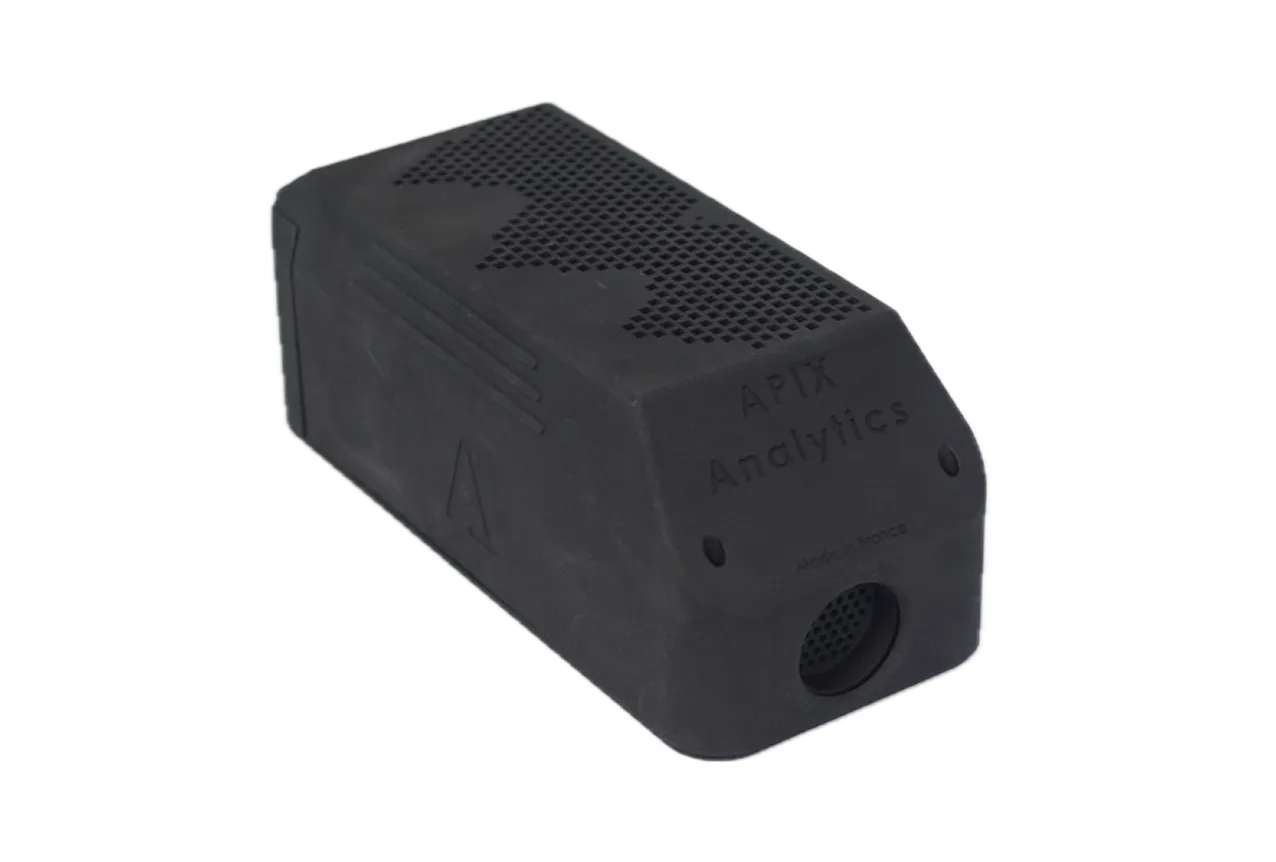

An Apix Analytics module is a fully integrated chromatograph, equipped with its own injector, column, and detector. Designed for seamless installation into platforms like ChromPix or ChromEx, it can operate as a standalone unit or be combined with other modules for advanced, multi-dimensional analysis—from light to heavy molecules.
A comprehensive gas chromatograph :
Including injector, a wide choice of columns and a silicon detector TCD and/or NGD
Compatibility :
Can be easily installed and combined in any of our systems, Chrompix, ChromEx or Fieldpix
Flexibility :
Depending on your need, you can combine up to 4 modules in a Chrompix or a ChromEx, and could go higher in a customized product
Why choose an Apix Analytics
nano-chromatograph ?
NGD Detector
The Nano Gravimetric Detector (NGD) is a unique gas detector designed using advanced MEMS/NEMS technology. It excels at measuring heavy molecules with sub-ppm precision, all without requiring a hydrogen flame, making it ideal for hazardous environments—unlike FID detectors. The NGD operates on the principle of adsorption/desorption of target molecules onto a porous material deposited on a nano resonator. As gas molecules are adsorbed, they alter the resonator’s frequency, similar to a quartz crystal microbalance detector, but with a detection limit 1,000 times greater. The NGD is insensitive to the type of carrier gas and can achieve ppb-level detection. As a non-destructive detector, it can be paired with a microTCD detector to cover the full range of gas analysis—from hydrogen (H₂) to heavy compounds. This unique capability enables Apix Analytics technology to tackle highly challenging applications directly on the process.
%201.webp)
GreenPix
A new era in chromatography has begun with GreenPix, the world's most compact full gas GC capable of analyzing gases from hydrogen to C14. Despite its small and lightweight design, thanks to maximum integration on silicon, GreenPix delivers impressive performance and results.
Hazardous Area product range
Housed in a certified EXD enclosure, the system provides the flexibility to configure up to four analytical modules, allowing you to perform complex analyses in the most challenging environments. For direct access to the instrument, we offer Wi-Fi connectivity. Additional communication protocols include TCP/IP and Modbus. We provide two types of enclosures: ChromeEx 200, which accommodates up to two analytical modules, and ChromeEx 400, which supports up to four analytical modules.
ChromEx GPix is our latest generation of analyzers, embedding up to three GreenPix modules in an EXD enclosure. It delivers a unique level of performance, specifically designed for highly demanding applications.
Tabletop Product range
ChromPix is your best fit when you need to perform analysis in the lab or in non-hazardous areas. It comes in a 19-inch rack with a front screen monitor, allowing you to check your measurements at any time. ChromPix can embed up to four modules and provide you with the maximum flexibility in terms of number of carrier gases and samples.
ChromPix GPix is the latest generation of analyzers, embedding up to three GreenPix modules. It is the world's best-in-class microGC, capable of handling challenging applications ranging from H₂ to C₁₄. This highly compact and cost-effective solution redefines performance standards.
FieldPix
The mobile solution that brings chromatography to the sample. FieldPix empowers you to conduct the best GC analysis effortlessly, anywhere and anytime. It comes with a battery and two refilling cylinders for your carrier gas, allowing you to perform your analysis with one or two GC modules on-site in continuous mode for several hours autonomously.
Customized Product
Apix Analytics helps you design your optimum chromatography solution based on our GreenPix 'engine.' It will be your solution, your product. Do you have a project? Contact us, just like many of our valuable customers have already done with great success. We will be sincerely happy to share this journey toward GC analysis with you.
